S3C8/S3F8 Series Microcontrollers

Zilog's S3C8/S3F8 Series of 8-bit single-chip CMOS microcontrollers offers a fast and efficient CPU, a wide range of integrated peripherals, and various mask-programmable ROM sizes. Important CPU features include:

• Efficient register-oriented architecture

• Selectable CPU clock sources

• Idle and Stop power-down mode release by interrupt

• Built-in basic timer with watchdog function

A sophisticated interrupt structure recognizes up to eight interrupt levels. Each level can have one or more interrupt sources and vec

S3F8S28/S3F8S24 Microcontroller

The S3F8S28/S3F8S24 single-chip CMOS micro-controller is fabricated using a highly advanced CMOS process and is based on Zilog's newest CPU architecture. Its design is based on the powerful SAM8RC CPU core. Stop and idle (power-down) modes were implemented to reduce power consumption.

The S3F8S28/S3F8S24 is a micro-controller with 8K/4Kbyte multi-time-programmable Flash ROM embedded.

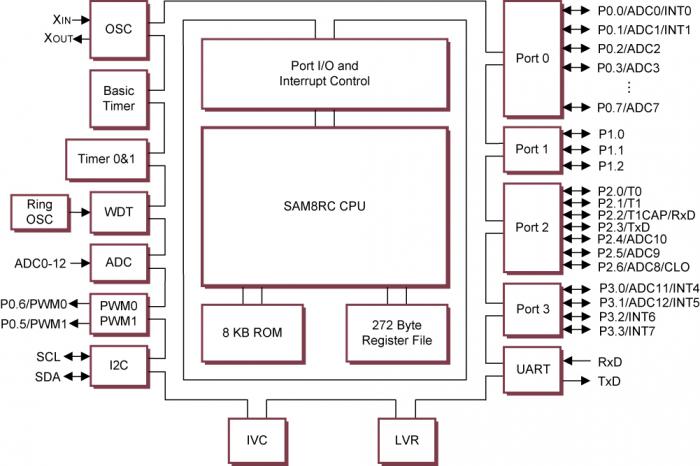

Using the SAM8RC design approach, the following peripherals were integrated with the powerful core:

• Three configurable I/O ports (22 pins)

• 18 interrupt sources with 18 vectors and 8 interrupt levels

• A 16-bit Timer 0 with one 16-bit timer or two 8-bit timer mode.

• A 16-bit Timer 1 with interval & Capture function.

• A free running Watchdog Timer with interrupt and Reset.

• Analog to digital converter with thirteen input channels (MAX.) and 12-bit resolution

• One UART module

• One IIC module

• Two PWM outputs with three optional mode: 12-bit (6 + 6); 8-bit (6 + 2); 14-bit (8 + 6);

The S3F8S28/S3F8S24 microcontroller is ideal for use in a wide range of electronic applications requiring simple timer/counter, PWM, ADC. S3F8S28/S3F8S24 is available in a 24/20-pin SOP Package and a 24-pin TSSOP package and a 20-pin DIP package.
